Features

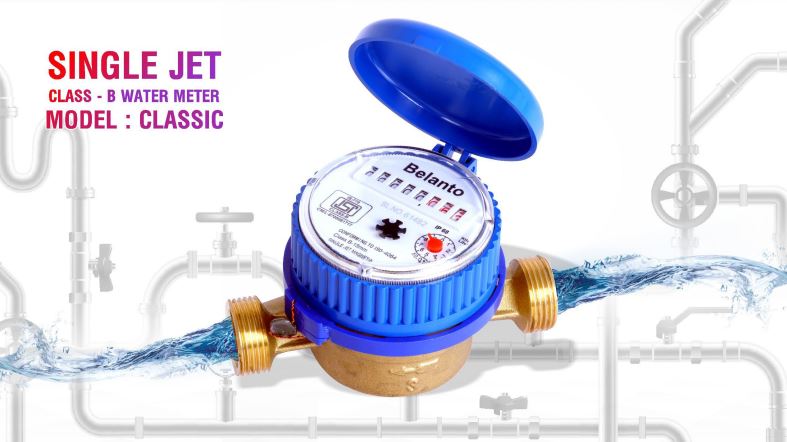

- Single-jet, Magnetically Driven, Frost resistant, dry dial, Moisture and dust proof, keep clear reading for a long time.
- Standard Confirm to IS: 779:1994, ISO: 4064 Class "B" Screwed End.
- All test passed by FCRI & Si Tarc.
- Totalizer reading in kilo litres at circular pointer.
- Horizontal Flow and high accuracy water meters.
- Protection against Magnetic Tampering.
- Totalizer dial straight reading.
- Brass body, nut & nipples with plastic cap
- Maximum reading capacity 99999.9999m³
- Totalizer is closed type.
Our Clients
Working Conditions
Water Temperature ≤45°c
Water Pressure ≤ 1MPa (PN:1.6 MPa/16bar)
Accuracy
From minium flow rate (Qmin) Inclusive to
transitional flow rate (Qt), Exclusive +- 5%
From transitional flow rate (Qt) Inclusive to
Maximum flow rate (Qmax), Inclusive +- 2%
Meter Dimensions
| TYPE | Size (mm) | Length mm L | Width (mm) W | Length Including Nipplet± 5% | Height (mm) H | Conneting Thread D |
|---|---|---|---|---|---|---|
| Single Jet | 15MM | 110 | 77 | 250 | 82 | G 3/4 B |
| Single Jet | 20MM | 165 | 78 | 290 | 85 | G1B |
Performance Data
| Nominal Size DN (mm) | Minimum Reading Qunitity In Litres | Hydro Static Test | Maximum Flow Rate in Qmax-Lts./Hr | Nominal Flow rate Qn-Lts/hr | Transitional flow rate Qn.Lts/hr | Minimum Starting Flow Qmin-Lts/hr |
|---|---|---|---|---|---|---|
| 15 | 0.1 | 2.0MPa | 3000 | 1500 | 120 | 30 |
| 20 | 0.1 | 2.0MPa | 5000 | 2500 | 200 | 50 |
